The Semantic Moat Part 3: Operationalising Stateful Lakehouse Fabrics and Deterministic AI Guardrails

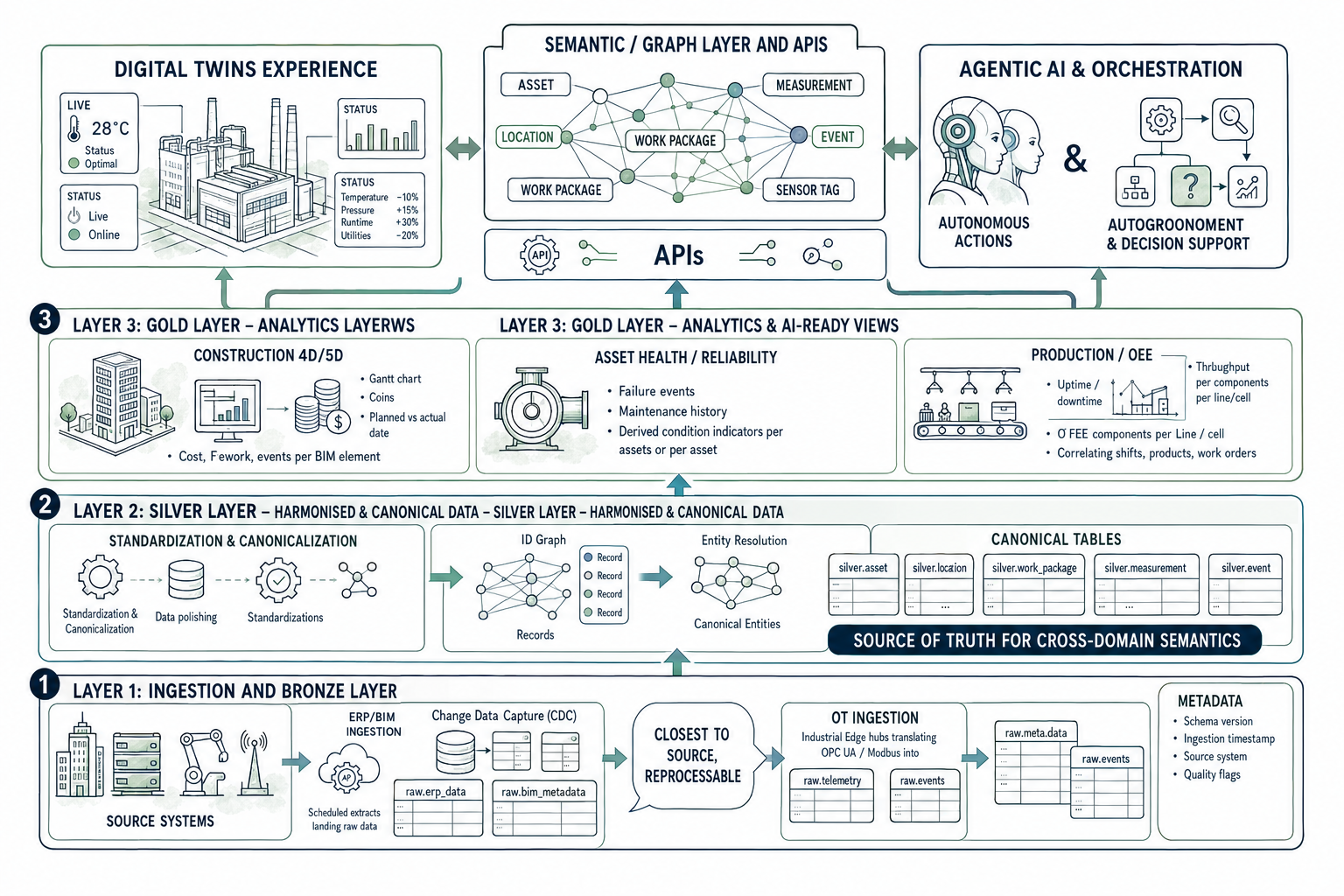

From canonical model to operational data platform

The canonical model and entity resolution logic from Part 2 only deliver value when embedded into a production-grade data platform that supports continuous ingestion, transformation and consumption.

‍

Industrial AI reference architectures show exactly this: ERP and OT data flows via Industrial DataOps/edge into a cloud lakehouse where bronze tables capture raw payloads, silver tables hold harmonised models and gold tables feed BI and AI.

‍

A semantic/graph layer and APIs on top expose BIM–ERP–OT semantics for digital twins and agentic AI.

Layer 1: Ingestion and bronze layer

The ingestion and bronze layers handle raw data capture and persistence.

• ERP/BIM ingestion: use APIs, CDC or scheduled extracts to land master data, transactions and BIM metadata in bronze tables with minimal transformation.

• OT ingestion: use industrial edge/data hubs to translate OPC UA/Modbus/etc. into time-series streams and land them into bronze telemetry and event tables.

• Metadata: capture schema version, ingestion timestamp, source system and quality flags.

Bronze remains as close to the source as possible for traceability and reprocessing.

Layer 2: Silver layer – harmonised and canonical data

The silver layer is where harmonisation and canonicalization become concrete.

• Standardize types, units, codes and timestamps.

• Map records to canonical entities via ID graph and entity resolution.

• Enforce conformance and data quality rules.

You end up with tables like silver.asset, silver.location, silver.work_package, silver.measurement, silver.event, which are the “source of truth” for cross-domain semantics.

Example: building silver-level canonical tables (SQL)

‍

Bitemporal identity as a non‑negotiable AI requirement

‍

In heavy industry, assets are swapped, re-tagged, reconfigured and re-mapped continuously; what you believed an asset was at the time of a failure may differ from what you think it is today.

‍

If your silver.asset is just “latest truth,” any AI model evaluation or root-cause analysis that tries to replay events as-of a failure timestamp will silently use current mappings, not the mappings that were valid at that second. Bitemporal modeling fixes this by tracking both:

• System time – when the platform asserted/recorded a mapping (asserted_at).

• Business/valid time – when the mapping is considered semantically valid in the physical world (valid_from, valid_to).

That allows exact time-travel queries for identity, not just for raw data.

Step 1 – Bitemporal identity ledger

‍

Define an append-only ledger instead of a replace-in-place table: ‍

‍

Append-only bitemporal identity ledger for assets

‍

Create the asset identity ledger as an append-only Delta table so every mapping between a canonical asset and a source-system identifier is preserved over time.

‍

CREATE TABLE IF NOT EXISTS silver.asset_identity_ledger (
   canonical_asset_id STRING NOT NULL,
   source_id STRING NOT NULL,        -- ERP asset_code or BIM element_id
   source_system STRING NOT NULL,    -- e.g., 'ERP' or 'BIM'
   match_rule STRING NOT NULL,
   match_score DOUBLE NOT NULL,

   -- Bitemporal columns
   asserted_at TIMESTAMP NOT NULL,   -- when this mapping was written
   valid_from TIMESTAMP NOT NULL,    -- when this mapping becomes valid
   valid_to TIMESTAMP                -- when this mapping stops being valid; NULL means open-ended
)
USING DELTA;

‍

New mappings are appended; when an asset is swapped or reconfigured, you insert a new row with a later valid_from and set valid_to on the previous one, implementing a bitemporal SCD2 pattern over identity.

‍

You can keep a convenience “current view”:

‍

CREATE OR REPLACE VIEW silver.asset_current AS

SELECT *

FROM silver.asset_identity_ledger

WHERE valid_to IS NULL;

Step 2 – Time-aware silver.measurement joins

‍

Instead of joining telemetry to timeless mappings, join to the ledger with a validity predicate:

‍

-- Silver.Measurement: OT telemetry mapped to assets via bitemporal identity
CREATE OR REPLACE TABLE silver.measurement AS
SELECT
 t.telemetry_id,
 l.canonical_asset_id AS asset_id,
 t.tag_name,
 t.timestamp_utc,
 t.value_std,
 t.measurement_type,
 t.unit_std,
 t.quality_flag,

 -- propagate mapping provenance
 l.source_system,
 l.source_id,
 l.match_rule,
 l.match_score,
 l.asserted_at,
 l.valid_from,
 l.valid_to
FROM silver.telemetry_raw AS t
JOIN silver.asset_tag_mappings AS m
 ON t.tag_name = m.tag_name
JOIN silver.asset_identity_ledger AS l
 ON l.source_id = m.source_id
AND l.source_system = m.source_system
AND t.timestamp_utc >= l.valid_from
AND (l.valid_to IS NULL OR t.timestamp_utc < l.valid_to);

‍

Now each telemetry event is bound to the identity mapping that was actually valid at that instant, not whatever mapping exists today.

Step 3 – Bitemporal silver.asset view

‍

You can still present a silver.asset logical model as a view over the ledger and source metadata:

‍

-- Bitemporal silver.asset view enriched with ERP/BIM metadata
CREATE OR REPLACE VIEW silver.asset AS
SELECT
 l.canonical_asset_id AS asset_id,
 l.source_id,
 l.source_system,
 COALESCE(e.description, b.description) AS asset_name,
 COALESCE(e.asset_class, b.ifc_class) AS asset_class,
 COALESCE(e.plant_code, b.project_id) AS site_code,
 l.match_rule,
 l.match_score,
 l.asserted_at,
 l.valid_from,
 l.valid_to
FROM silver.asset_identity_ledger AS l
LEFT JOIN silver.erp_asset_master AS e
 ON l.source_system = 'ERP'
AND l.source_id = e.asset_code
LEFT JOIN silver.bim_equipment AS b
 ON l.source_system = 'BIM'
AND l.source_id = b.element_id;

Layer 3: Gold layer – analytics and AI-ready views

Gold-layer tables are designed around use cases and KPIs, not source systems.

• Construction 4D/5D: per BIM element/work package, store planned vs actual dates, cost, quantities, rework and related events.

• Asset health/reliability: per asset, aggregate failure events, maintenance history, derived condition indicators and contextual features.

• Production/OEE: per line/cell, aggregate throughput, downtime, scrap, OEE components and correlate to shifts, products and work orders.

These tables directly feed BI, AI and digital twin experiences.

Example: asset health features and the Stateful Feature Store Loop

‍

The rolling vibration features are a good start, but in a heavy-industry setting they must sit inside a Stateful Feature Store Loop with Circuit‑Breaker Logic, not a one‑way “compute and forget” pipeline.

‍

The loop is: ‍

• ‍Feature computation – compute rolling vibration vectors (vib_mean_30d, vib_std_30d, vib_max_30d) and failure statistics per asset. ‍
• Feature registration – publish these features into a gold-level feature store tagged with semantic metadata (asset class, design tolerances, location) from the unified ontology. ‍
• Agentic consumption – allow AI agents or control workflows to read these features to propose set-point changes or maintenance recommendations. ‍
• Semantic validation (circuit breaker) – before any recommendation can be executed in MES/SCADA, automatically validate it against design tolerances and constraints documented in BIM and the semantic layer (e.g., maximum allowable vibration for that pump type, structural resonance limits, safety margins). ‍
• Controlled execution – only if the recommendation passes semantic validation (or is explicitly approved by a human) is it allowed to change live MES set-points or schedules; otherwise the semantic circuit breaker blocks or down-rates the action.

Feature computation (unchanged)

‍

from pyspark.sql import functions as F
from pyspark.sql.window import Window

asset = spark.table("silver.asset")
meas = spark.table("silver.measurement")
events = spark.table("silver.event")

vib = meas.filter(F.col("measurement_type") == "VIBRATION_RMS")

window_spec = (
   Window.partitionBy("asset_id")
   .orderBy(F.col("timestamp_utc").cast("long"))
   .rangeBetween(-30 * 24 * 3600, 0)
)

vib_features = (
   vib
   .withColumn("vib_mean_30d", F.avg("value_std").over(window_spec))
   .withColumn("vib_std_30d", F.stddev("value_std").over(window_spec))
   .withColumn("vib_max_30d", F.max("value_std").over(window_spec))
)

failures = events.filter(F.col("event_type") == "FAILURE") \
                .select("asset_id", "event_ts")

asset_health_features = (
   vib_features.alias("v")
   .join(asset.alias("a"), "asset_id")
   .join(failures.alias("f"), "asset_id", "left")
   .groupBy("asset_id")
   .agg(
       F.max("v.timestamp_utc").alias("as_of_ts"),
       F.last("vib_mean_30d").alias("vib_mean_30d"),
       F.last("vib_std_30d").alias("vib_std_30d"),
       F.last("vib_max_30d").alias("vib_max_30d"),
       F.count("f.event_ts").alias("failure_count_total")
   )
)

asset_health_features.write.mode("overwrite").saveAsTable("gold.asset_health_features")

Semantic validation: tying recommendations back to BIM tolerances

‍

On the consumption side, an agentic workflow might do something like:

• Read gold.asset_health_features for a target asset.
• Propose a new vibration set‑point (or operating regime) based on model outputs.
• Call a semantic guardrail service that checks the proposed set‑point against design tolerances from the BIM model and engineering specs stored in the ontology (e.g., maximum design vibration RMS and safety factors for that pump family).

Conceptually:

‍

# Pseudo-code for a circuit-breaker check (not full implementation)

health = spark.table("gold.asset_health_features").filter(F.col("asset_id") == some_asset_id).collect()[0]

# proposed_setpoint_vib_rms comes from a model / agent
proposed_setpoint_vib_rms = model_output.setpoint_vib_rms

# Lookup design tolerances via semantic layer / BIM-derived table
design_limits = spark.table("silver.bim_design_tolerances") \
                    .filter(F.col("asset_id") == some_asset_id) \
                    .select("max_vibration_rms", "safety_factor") \
                    .collect()[0]

max_allowed = design_limits["max_vibration_rms"] * design_limits["safety_factor"]

if proposed_setpoint_vib_rms <= max_allowed:
   # Recommendation passes semantic guardrail; can be passed to MES with proper controls
   execute_mes_setpoint_change(asset_id=some_asset_id,
                               new_vib_setpoint=proposed_setpoint_vib_rms)
else:
   # Circuit breaker trips; log and route to human or reject
   log_violation(asset_id=some_asset_id,
                 proposed_vib=proposed_setpoint_vib_rms,
                 max_allowed=max_allowed)
   raise Exception("Semantic guardrail violation: proposed set-point exceeds BIM design tolerance")

‍

Here:

• The feature store loop is stateful: features, recommendations and executed actions are all logged and traceable over time, enabling continuous monitoring and model governance.

• The semantic layer and BIM-derived tolerances act as a circuit breaker: even if an AI model produces a numerically plausible recommendation, it cannot push the system beyond what the original engineering design allows without explicit override.

This is the pattern that turns rolling vibration features from pure analytics into deterministic AI guardrails for autonomous or semi-autonomous MES control, aligning with your broader “Semantic Moat / Stateful Lakehouse Fabrics” narrative.

Feature stores and AI services

Once gold tables are stable, you can formalize features and models:

• Feature store: register features such as vibration statistics, failure counts, cost variance metrics and environment features, with standardized definitions and serving APIs.

• Model lifecycle: use experiment tracking and model registries to version models, monitor drift and deploy to batch or streaming inference jobs.

• AI agents: build agentic applications that query the semantic layer and features to answer questions or automate tasks (e.g., suggest schedule changes, propose maintenance windows).

Industrial AI reference architectures describe this as agents orchestrating production control recommendations, field service assistance and machine vision decisions.

Governance, lineage and security

Bringing BIM, ERP and OT data together raises governance requirements:

• Data governance: define data owners/stewards for canonical entities and enforce SLAs, quality metrics and retention policies.

• Lineage: maintain lineage from gold views and features back to silver and bronze tables and, ultimately, to source systems.

• Security/zero trust: enforce least-privilege principles, segment OT data, and apply fine-grained access controls and masking for sensitive financial or personnel data.

Semantic-CDE and digital-twin research emphasizes that semantic coherence plus governance is key to making integrated BIM–IoT–GIS data trustworthy for real-time decision-making.

Cross-domain analytics examples you unlock

With this architecture in place, you can implement analytics that were previously manual or impossible.

• Construction
  • 4D/5D BIM dashboards showing schedule and cost variance per BIM element or location, correlated with RFIs, change orders and supplier performance.
  • Safety analytics that correlate near-miss events and unsafe conditions with specific locations, subcontractors and work packages.

• Automotive
  • Predictive maintenance models for high-value assets that combine telemetry, work orders, BOM and supplier data to forecast failures and optimize spares inventory.
  • Process optimization that tunes parameters on lines based on product mix and historical performance.

• Manufacturing
  • Network-wide OEE, energy and emissions analytics across plants, normalized for product mix and utilization.
  • Closed-loop quality control where machine vision and telemetry models drive set-point changes in near-real time.

These use cases directly impact P&L when embedded into daily operations, not just dashboards.

Digital twins as the natural UX

Digital twins are a natural UX for AI-ready BIM–ERP–OT data:

• BIM-centric twins: use the BIM model as spatial backbone, overlaying progress, cost and telemetry to give site teams a single pane of glass.

• Asset-centric twins: integrate engineering data, maintenance history and telemetry for continuous asset health monitoring.

• City/portfolio-scale twins: integrate BIM, GIS and IoT into city information models (CIMs) for infrastructure and campus-level analytics.

Multi-layer BIM–IoT digital twin architectures show that ontology-based integration and service-oriented data access enable real-time monitoring, optimization and predictive maintenance.

Implementation roadmap and stack-agnostic principles

Regardless of cloud or vendor, the roadmap tends to converge:

‍

1. Strategize

• Identify high-value cross-domain use cases and prioritize by value/cost/feasibility.

2. Operationalize

• Stand up a cloud data platform; integrate ERP, BIM and one pilot plant/site; design canonical model and ID graph; implement bronze–silver–gold flows and governance for the pilot.

3. Industrialize

• Scale ingestion and canonicalization across plants/projects; stand up feature stores and AI services; embed outputs into digital twins and operational workflows; continuously refine ontologies and mappings.

Reference architectures from industrial AI and edge-to-cloud OT pipelines consistently show that vendor-neutral, AI-ready lakehouse backbones are the sustainable path to cross-domain analytics.

Closing: from data islands to an AI-native backbone

BIM, ERP and shop-floor systems will remain specialized, but their data does not have to remain siloed.

‍

By combining canonical models, rigorous schema harmonisation, robust entity resolution patterns and a governed medallion data platform, you can turn fragmented construction and manufacturing data into an AI-ready backbone that underpins digital twins, advanced analytics and agentic AI.

‍

The heavy lifting is in defining semantics and cleaning and mapping legacy data, but once built, each new AI use case becomes a configuration exercise instead of a bespoke integration project shifting your organization from AI experiments to AI-native operations.
