This post shows how to evolve from unstructured, chunk‑based RAG copilots to clause‑centric contract intelligence platforms in legal, advisory, and compliance firms. It dives into clause‑as‑entity data models, metadata design, legal knowledge graphs, and structure‑aware RAG, and explains how to turn contracts into reliable, auditable decision inputs for policy engines, analytics, and AI‑driven workflows.
In most software domains, a model that is 90% accurate is a success. In legal, advisory, and compliance work, that 10% gap is not a rounding error, it is where liability lives. A missed indemnity carve-out, a misread data residency clause, or a failed sanctions check are not retrieval misses; they are compliance failures, enforceable obligations, and audit findings.
Most legal AI systems today are built on probabilistic text search: documents chunked into vectors, retrieved by semantic similarity, and summarised by a language model. This architecture is well-suited for research, drafting suggestions, and exploratory Q&A. It is not suited for deterministic decisions : approvals, risk sign-offs, regulatory attestations where the system must be provably correct, not probably correct.
The engineering gap between these two states is not a model quality problem. It is a data modelling problem. The solution is to stop treating contracts as documents to be searched and start treating clauses as structured data entities each with a canonical type, jurisdiction metadata, extracted obligations, risk score, and full provenance linking back to the source text. When clauses are first-class database entities rather than text fragments, AI systems can evaluate them deterministically, audit every decision completely, and produce outputs that hold up to legal and regulatory scrutiny.
This two‑part series explains the architecture required to make that shift: from unstructured, chunk‑based RAG to a clause‑centric intelligence pipeline where the remaining 10% gap is closed not by a better language model, but by better structured data. Part 1 diagnoses the failure modes of standard legal RAG; Part 2 walks through the clause‑centric data model, ingestion pipeline, and hybrid deterministic–generative architecture needed to replace it in production.
Legal and advisory documents MSAs, NDAs, SOWs, policies, regulations, and opinions; share one property that generic document parsers systematically underestimate: their layout is not formatting. It is legal meaning.
Consider the following structure, common in any commercial services agreement:
Indemnification
Sub-clauses 1(a) and 1(b) are not elaborations of a general point they are legal carve-outs that negate the obligation in 1. Clause 2 is not a standalone liability cap it is scoped exclusively to Clause Indemnification. If a parser loses the indentation relationship between 1 and 1(a), the downstream AI reads a broad, unconditional indemnity where the contract grants a conditional, capped one.
That is not a retrieval error. That is the AI creating an obligation that does not exist in the contract.
Legal documents carry this recursive, hierarchical structure throughout:
The engineering consequence is precise: any pipeline that does not preserve document hierarchy as a first-class data structure will produce structurally incorrect legal representations. Not occasionally systematically, for every document where meaning is carried by position rather than by the words alone. In legal work, that is most documents.

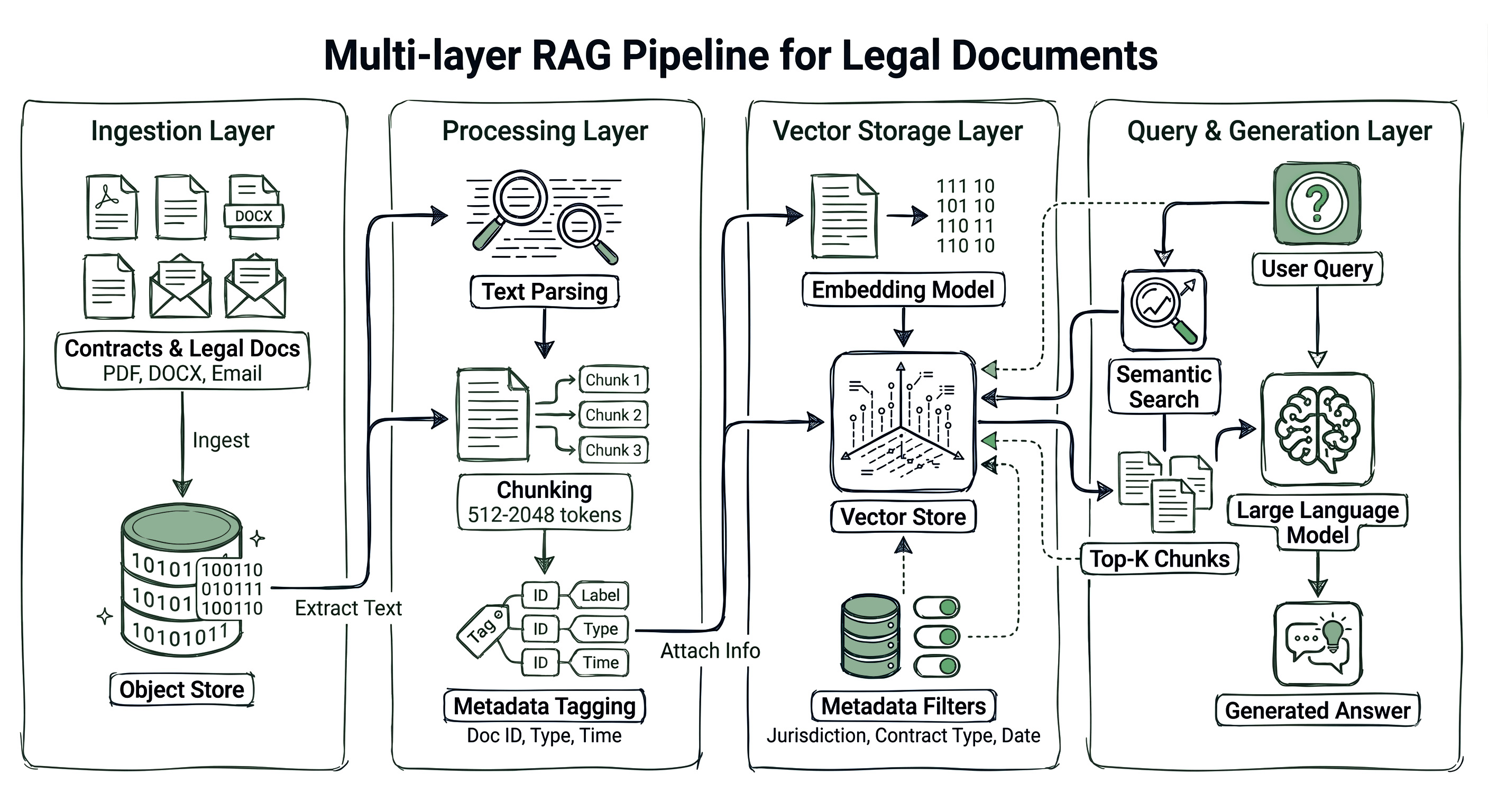

Most early "legal copilots" follow a standard RAG architecture:
.jpg)
The primary failure of this pattern in legal work is context fragmentation. Chunking a document based on arbitrary token counts severs the semantic links between definitions, exclusions, and the governing clause they qualify. A definition in Article 1, a carve‑out in a sub‑clause, and a liability cap in a later section are three parts of a single legal construct; taken alone, each fragment is legally incomplete. Standard RAG, however, treats each chunk as an isolated string. The LLM then reasons over partial context and produces confident answers that ignore the missing definitions, carve‑outs, or amendments. In complex litigation or regulatory advisory work, that is not just “approximate” it is a hallucination risk, because a clause without its surrounding context is **legally void** as a basis for advice
This is an entry-level architecture: low barrier to entry, fast to prototype, and sufficient for use cases where approximate answers carry no material consequence. A legal researcher exploring case law, a drafter looking for clause inspiration, or an associate doing first-pass document triage can extract real value from this pattern.
But entry-level is not the same as fit-for-purpose. In professional services ; legal, advisory, and compliance : the baseline is not "accurate enough." It is zero-error tolerance on obligations, rights, and risk positions that directly affect clients, regulators, and courts. The same architecture that produces a useful research summary on Monday can generate a missed sanctions exposure or an incorrect indemnity assessment on Tuesday, with no signal to the user that the answer is structurally incomplete.
Deploying this pattern in a production legal or compliance environment is not a calibration problem: it is a category error. The framework was not designed for deterministic correctness. It was designed for probabilistic relevance. Those are different engineering contracts, and professional services work requires the former.
Key limitations of unstructured RAG in professional services include:
The deepest failure of vector-based retrieval in legal work is not that it retrieves the wrong clause it is that it retrieves the right clause with the wrong meaning, and the embedding score gives no signal that anything is wrong.
Consider two clauses from different versions of the same MSA:
Version 1 (2021): "The Supplier shall indemnify the Client against all third-party claims arising from the Services."
Version 2 (2023 amendment): "The Supplier shall indemnify the Client against all third-party claims arising from the Services, except where such claims arise from the Client's own instructions or specifications."
These two clauses will produce nearly identical embedding vectors. Their cosine similarity will be high. A semantic search will rank them equally, or prefer whichever appears more frequently in the training corpus. But legally, they are opposite positions: one creates uncapped exposure, the other carves it out entirely. The word "except" carries the entire legal delta and vector embeddings are structurally blind to it.
This is not a model quality problem that a better embedding resolves. It is a fundamental limitation of representing legal obligations as geometric proximity in vector space. Legal meaning is not distributed smoothly across semantic similarity it is concentrated in negations, qualifications, and modal verbs that embeddings systematically compress.
The engineering response is not to improve the embedding. It is to treat metadata as hard filters that gate what the LLM is allowed to see, before retrieval begins:
LegalBench‑RAG benchmarks confirm that provision-level retrieval accuracy is the critical failure point in legal RAG systems. But the solution is not retrieval tuning alone it is making metadata structurally upstream of retrieval, so that the LLM operates on a pre-filtered, version-correct, jurisdiction-appropriate candidate set rather than a probabilistic guess about what is relevant.
A contract repository answers one question: "Where is this document?" A contract intelligence layer answers a fundamentally different class of question: "What obligations, risks, and rights exist across all our documents, and how do they compare?" These are not variations of the same problem. They require a different underlying data model.
The architectural move from repository to intelligence is precisely this: turning a document into a database. Not indexing it, not embedding it, not making it searchable but decomposing it into structured rows and relationships where every clause, obligation, party, date, and risk attribute exists as a queryable data point with a defined type, a canonical category, and a traceable provenance back to the source text.
When that decomposition is complete, the contract stops being a document and becomes a structured data asset. And structured data assets can do things that documents categorically cannot:
None of these are analytics enhancements. They are questions that are structurally unanswerable when data is trapped in unstructured chunks, regardless of how powerful the language model processing those chunks is. The LLM is not the bottleneck. The data model is. Contract intelligence resolves that bottleneck by treating the extraction of structured clause data as the primary engineering output not the document storage, not the embedding, not the chat interface on top.
Research in legal knowledge graphs shows how legal texts can be transformed into nodes and edges representing articles, obligations, rights, penalties, parties, and temporal versions. These knowledge graphs enable structured querying and reasoning over legal norms and case law, supporting legal QA systems where answers are derived from explicit relationships rather than opaque text retrieval.
Graph‑RAG directly solves the cross-reference problem that breaks standard retrieval in legal work. In a flat vector store, every clause is an isolated node scored independently by semantic proximity. In a graph-based model, clauses are connected by typed edges that encode their legal relationships :- DEFINED_BY, QUALIFIED_BY, OVERRIDDEN_BY, SUBJECT_TO, AMENDED_BY :- and retrieval traverses those edges, not just the embedding space.
The practical consequence is that when a query touches Clause 12.4 (a liability cap), the graph retrieval layer does not return Clause 12.4 alone. It returns:
This is the legal neighbourhood of a provision; the complete set of structurally connected clauses that together constitute its full legal meaning. A standard RAG system, retrieving by cosine similarity, has no mechanism to assemble this neighbourhood. It may return three of four components, or none of the carve-outs, or the superseded version of the amendment. Each of those failures produces a different wrong answer, and none of them are detectable from the retrieval score alone.
By modelling clause relationships as first-class graph edges, the retrieval layer guarantees that the LLM always sees the parent definition and the child exception simultaneously. The indemnity obligation and its carve-out arrive together. The defined term and its operative usage arrive together. The original clause and its amendment arrive in their correct temporal sequence. The legal reasoning the LLM performs is grounded in a structurally complete context not a probabilistically assembled fragment set that happens to score well against the query.
This is why Graph‑RAG for legal applications is not an incremental improvement over standard retrieval. It is a different retrieval contract: instead of "find the most similar text", it is "retrieve the legally complete context for this provision" and those two operations produce materially different inputs to the language model, and materially different outputs that affect legal decisions.
These insights translate directly into contract intelligence architectures where each clause and obligation is treated as an entity with attributes, links, and temporal state.
Taken together, the evidence is clear: standard, chunk‑based RAG and generic ChatGPT‑style copilots were never designed for the accuracy and traceability that legal, advisory, and compliance work demands. They fragment context, ignore document hierarchy, and rely on semantic similarity in precisely the domain where a single word “except”, “unless”, “subject to” can flip the meaning of a clause entirely. A clause retrieved without its parent definition, carve‑outs, or amendments is not a smaller piece of the truth; it is a legally different statement.
Graph‑aware retrieval and legal knowledge graphs demonstrate that the right abstraction is not “document as text” but “clause as node in a structured network of definitions, exceptions, and temporal versions”.The failure modes of naive RAG are not tuning problems; they are symptoms of the fact that the underlying data model does not know what a clause, a cross‑reference, or a version actually is. Until that changes, every AI system in this space will remain a sophisticated research assistant rather than a reliable decision engine.
Part 2 of this series focuses on what that change looks like in practice: a clause‑centric contract intelligence architecture where clauses are first‑class data entities with metadata, version graphs, and provenance; where deterministic policy engines sit alongside generative models; and where every AI‑assisted answer can be traced back to specific clause text that will stand up in front of clients, regulators, and courts.
